FEATURES

MODULAR STRUCTURE FITTINGS

Stucture Fixtures

Our modular structure fixtures, crafted from aluminum profiles with steel connection parts, ensure durability and strength. The product line includes a variety of components and accessory parts that seamlessly integrate into all modular buildings, including walls, doors, roofing systems, and various other features.

RANGE

MODULAR BUILDINGS

Strong & Durable

Choose from our extensive range of structure fixtures. Custom designed parts can be arranged too.

WALL ROOF

Roof & Wall Panel Options

Australian Modular Structures offer a selection of materials including sandwich panels, steel sheets, Thermo inflatable PVC, or single-layer PVC, all flame retardant to meet Australian Standards. Wall systems consist of horizontal panels measuring 60mm x 2.5m x 1m. The aluminum frame allows for mounting on both external and internal surfaces.

Sandwich Panel

The insulated sandwich panel is best suited for insulated buildings. Panels are available in different material thicknesses with PUR foam or mineral wool filling. A range of exterior colours are available.

Steel Sheet

Both galvanised and coated sheet comes in different colours and the option of coating against condensation in the roof area.

Thermo

The Thermo Roof twin layer sheets are pulled in the Keder-grooves of the structure and blown-up with a specially designed air pressure unit. As a result, the air pressure unit maintains a constant temperature level.

Single Skin PVC

Cover is flame-resistant pursuant to DIN 4102-B1. Is most suitable for canopies or non-insulated buildings. The single-skin cover is available in transparent, or opaque, and in a variety of different colours.

Skylight

Light Dome - Double-shell plastic. Smoke extraction function. Ventilation function. Wind and rain detector

Double Layer PVC

Flame-resistant pursuant to DIN 4102-B1. The double-skin cover is available in transparent, or opaque, and in a variety of different colours.

Solar

Roof systems are insulated 100mm panel with solar panel brackets incorporated into the roof.

Insulated Steel Sheet

Galvanised and coated sheet comes in different colours and the option of coating against condensation in the roof area.

Glass

Glass walls systems are double glazed with natural ventilation options, 1m H x 2.5m L x 60mm W, with options for different openings.

Glass Door

Attractive glass entry doors. Double glazed. Standard dimensions 1m x 2m or 2m x 2m double. Custom sizes available.

Roller Shutter

Roller shutter - Made of insulated, glavanised steel profiles. Electric drive. Accessories available.Dimensions: Width 4.50m/height 3.5m or 4.50m

Sectional Door

Sectional Door - Made of PU sandwich panel. Electric drive. Light section optional.Wicker door optional. Dimensions: width 4.5m/ height 3.5m or 4.5m

PVC Door

PVC Door - Cost Effective door variant. Secure guidance header beam. Secure Locking possible. Dimensions: width 4.80m/ height up to 4.30m

Personnel

Single door - Dimensions approx: 1.00m x 2.00m or 2.00m x 2.20m (double leaf). Functions as personnel or escape door

Sliding

Sliding Door - Corrugated steel sheet or PU sandwich panels. Secure guidance header beam. Secure locking possible. Dimensions: width 4.80m/ height up to 4.50m

Double Door

Double door - Dimensions approx: 1.00m x 2.00m or 2.00m x 2.20m (double leaf). Functions as personnel or escape door

DOORS

Door Options

Doors Systems are sliding, hinged, and automated to fit into a 5m W x 2.4 m H bay. They can be solid glass, and personnel doors can provide flexibility and customisation if required. For larger structures, roller doors and aviation doors can be integrated into the structure.

WINDOWS

Window Options

A variety of window openings, both standard and custom, are offered in sizes from 600mm to 2500mm. For a more budget-friendly option compared to glass, consider a polycarbonate wall window strip measuring approximately 1000 x 4000mm. These are usually fitted under eaves within wall panels.

Single Window

Plastic or aluminium frame. Insulating glazing optional. Standard version: 50% turn/tilt function. Dimensions: approx 1.00m x 1.00m (1 leaf), 1.00m x 2.00m (2 leaf) or 1.00m x 4.00m (4 leaf)

Double Window

Window - Plastic or aluminium frame. Insulating glazing optional. Standard version: 50% turn/tilt function. Dimensions: approx 1.00m x 1.00m (1 leaf), 1.00m x 2.00m (2 leaf) or 1.00m x 4.00m (4 leaf)

4-Leaf Windows

Insulating glazing optional. Standard version: 50% turn/tilt function. Dimensions: approx 1.00m x 1.00m (1 leaf), 1.00m x 2.00m (2 leaf) or 1.00m x 4.00m (4 leaf)

Display Window

Display window - Plastic or aluminium frame. Insulating glazing optional

Rawl Bolts

Rawl Bolts - Fastening variant for concrete. Heavy duty or chemical anchors

Floor Fixture

Floor closing off - Flexible planning. Floor cover plate for different construction situations/floor conditions

Earth Anchor

Earth Anchor - Cost effective, flexible fastening variant. Removable without residue. Sustainably reconnectable

ANCHORS

Fasteners

Anchors are secured to concrete foundations to ensure durability of the building.

FEATURES

Other Features

Lighting

Our lighting systems not only feature LED lighting and skylights but also accommodate solar energy. Moreover, rigging can be incorporated to enhance the lighting possibilities.

Heating & Cooling

HVAC systems enable convenient and energy-efficient heating and cooling.

Guttering

Both strong, economical fascia guttering system and downpipes are fast and easy to install.

Crash Barrier

Not only are the barriers made with a galvanised finish, but also offer impact protection.

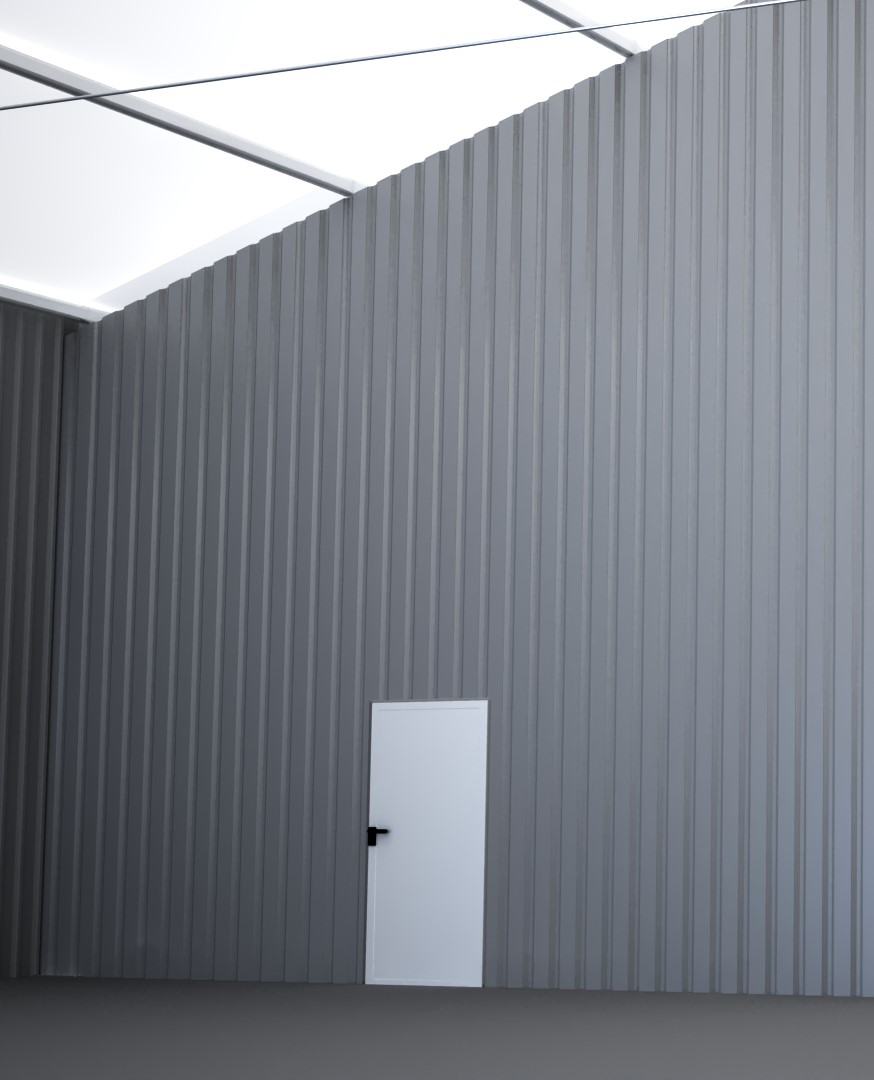

Gable Line Partitions

Gable line partitions can divide the building into sections using materials such as PVC, corrugated steel, or sandwich panels. Moreover, gate and door installations are also feasible.
